Upgrading Lutron HomeWorks & GRAFIK Eye for yachts and luxury homes
A failing processor or flickering dimmers rarely means starting over. Most legacy Lutron systems can be brought up to current HomeWorks QSX — often reusing the existing wiring and panels.
A good Lutron system is worth keeping — and worth modernising.
Lutron HomeWorks has been the lighting control of choice on fine yachts and in luxury homes for two decades. The systems installed in that time — HomeWorks Illumination, HomeWorks Interactive, early HomeWorks QS, and GRAFIK Eye in its various forms — were built to last, and many are still running. What has changed is everything around them: light sources are now LED, control happens by app and voice, and the older dimming hardware was never designed for either.
The good news is that an upgrade to current HomeWorks QSX is rarely the wholesale rip-out owners fear. The wiring, the panels and much of the programming can usually be carried forward — so the work is measured, and often phased. This article covers when to upgrade, how the migration paths work for both HomeWorks and GRAFIK Eye, the LED retrofit that so often triggers the project, and the energy and running-cost case behind it.
80–90%
Less power: LED vs halogen
25,000h+
Typical LED fixture life
HomeWorks QSX
Current upgrade target
Palma
Mediterranean base
Can a Lutron HomeWorks Illumination system be upgraded without replacing everything?
Yes. A modern upgrade lets legacy panels communicate with a current HomeWorks QSX processor, so existing dimming panels, wiring harnesses and back-boxes are largely reused. Keypads move to current models — often reusing the same low-voltage wiring — and a database converter carries across much of the original room structure and programming. A full rip-out is rarely necessary.
What are the signs a Lutron HomeWorks or GRAFIK Eye system needs upgrading?
Flickering or uneven dimming, unresponsive keypads, scenes that drift, and — most seriously — a processor that has failed or can no longer be backed up. Legacy dimming modules were built for halogen rather than LED, so flicker after an LED retrofit is common. Once a legacy processor fails, its programming often cannot be recovered, which is why upgrading before failure is the safer course.
Why a legacy system reaches its limit
The symptoms are consistent, and they usually trace back to the same root cause: hardware engineered for a different era of lighting. Recognising them early is what turns an emergency into a planned, well-staged upgrade.
Dimming built for halogen
Older modules use forward-phase (leading-edge) dimming made for halogen and incandescent loads. Drop in LED and the result is often flicker, drop-out or a narrow usable range — because the load they were designed for no longer exists.
The single-processor risk
Legacy systems depend on one processor holding the programming locally. If it fails, the configuration frequently cannot be extracted — meaning the system has to be rebuilt from scratch rather than restored.
Parts no longer made
Discontinued dimming modules, keypads and interfaces become hard to source. A fault that once meant a quick swap can stall for weeks while a replacement is hunted down — or force a wider upgrade under pressure.
No app, no remote, no voice
Systems from before the connected era have no native app control, no secure remote access and no voice layer — the things owners and crew now expect as standard, and that make day-to-day operation far simpler.
LED retrofit pressure
When halogen fixtures are replaced with LED — for energy, heat or parts reasons — the control system has to keep pace. An LED retrofit and a Lutron upgrade are two halves of the same project more often than not.
Heat, damage and cost
Halogen runs hot enough to damage finishes and bezels over time and adds load to the cooling system. Beyond the lamp bills, that heat carries a real and recurring cost — one an upgrade removes.
The upgrade paths
Every legacy system upgrades to the same destination — HomeWorks QSX — but the route depends on what is already installed. In almost every case the aim is the same: keep the infrastructure that still earns its place, and replace only what must change.
HomeWorks Illumination → HomeWorks QSX
The most common migration. A translator module lets the existing dimming panels — the RPM and spec-grade panels behind the walls — communicate with a new QSX processor over the modern link, so the panels, wiring harnesses and enclosures are reused rather than ripped out. A database converter carries the room structure, load schedules and much of the original programming into the new system, and legacy keypads move to current models while keeping their existing low-voltage wiring.
One technical note we always check: Illumination devices ran on 15 V supplies, while QSX runs on 24 V — so power supplies are matched carefully during the conversion, never simply reused.
HomeWorks QS → HomeWorks QSX
A more direct step. A HomeWorks QS installation is already close in architecture to QSX, so the upgrade is largely a processor and database migration — bringing wired, wireless and tunable light together under one current platform, with app and secure remote access added in the process.
GRAFIK Eye — keep, convert or absorb
GRAFIK Eye systems offer three routes. Existing units and their wallbox power modules can be retained on a HomeWorks QS or QSX system through the appropriate link and interface; they can be replaced unit-for-unit with GRAFIK Eye QS; or they can be fully absorbed into the new processor and panels. Which one fits comes down to the condition of the hardware, the zone count, and how much of the wider installation is being renewed at the same time.
Keypads & shades
Legacy keypads are replaced with current Lutron models — Palladiom or seeTouch among them — generally reusing the same back-box and low-voltage wiring, so walls stay closed. Older Sivoia QED shades and their interfaces move to Sivoia QS, frequently repurposing the existing shade wiring. The upgrade is, in effect, the moment to refresh the surfaces you actually touch.
The case for upgrading: energy, heat and running cost
Beyond reliability and control, there is a hard commercial argument for modernising — and it is strongest at sea, where every watt is generated on board. The figures below are industry ranges from public lighting, energy and marine sources; the exact numbers vary by vessel and property, but the direction is consistent.
80–90%
Lower power draw, halogen → LED
20–60%
Further savings from lighting controls
25,000–50,000h
LED life vs ~1,000–4,000h halogen
kW
Load removed by a full LED retrofit
Less power, far less heat
A modern LED draws in the region of 80–90% less electricity than the halogen it replaces for the same light, and turns far less of that energy into heat. Halogen wastes most of its input as heat and runs hot; LED runs cool. On board, that heat is doubly expensive — it has to be generated, and then removed again by the air-conditioning. Taking it out eases both sides of the equation.
Less generator time, less fuel
Marine sources put a full lighting retrofit in the order of several kilowatts removed from the electrical load — enough to reduce generator runtime, lower fuel burn and create headroom for other equipment without upsizing the gensets. Lower running hours also push out generator service intervals, deferring a significant maintenance cost across a season.
Controls multiply the saving
The light source is only half of it. Dimming, daylight response and occupancy sensing add a further saving on top — Lutron's own daylight-harvesting guidance and independent Lawrence Berkeley National Laboratory research put the range broadly between 20% and 60% depending on strategy and space. A HomeWorks QSX upgrade is what makes those strategies available in the first place.
Fewer lamps, less labour
Quality LED fixtures last in the range of 25,000–50,000 hours and beyond, against roughly 1,000–4,000 for halogen. Across hundreds of fixtures on a large yacht or estate, that is the difference between routine lamp changes — and the crew time they consume — and fixtures that may not need attention again for years. It also removes the recurring damage that halogen heat does to bezels and surrounding finishes.
Figures are indicative industry ranges drawn from public sources, including Lutron technical guidance, US Department of Energy and Lawrence Berkeley National Laboratory lighting-controls research, and marine-industry reporting. Actual savings depend on the specific fixtures, control strategy and operating profile of each vessel or property.
What an upgrade actually gives you
Modernising is not only about removing problems. The current platform brings genuinely new capability — the kind that changes how a space feels and how simply it runs.
App, voice and secure remote access
Control from a phone or tablet, an optional voice layer, and secure remote access so scenes can be adjusted — and issues resolved — wherever the yacht or residence happens to be.
Flicker-free LED, tunable white light
Phase-adaptive and DALI dimming that handles LED properly, and tunable white light that warms through the evening — built for the European market around the Lumaris and Orluna fixture families.
Current keypads and quiet shading
Palladiom and the wider luxury keypad range, paired with Sivoia QS motorised shading — light and shade finally managed as one system, on the same scenes.
The same upgrade, two very different settings

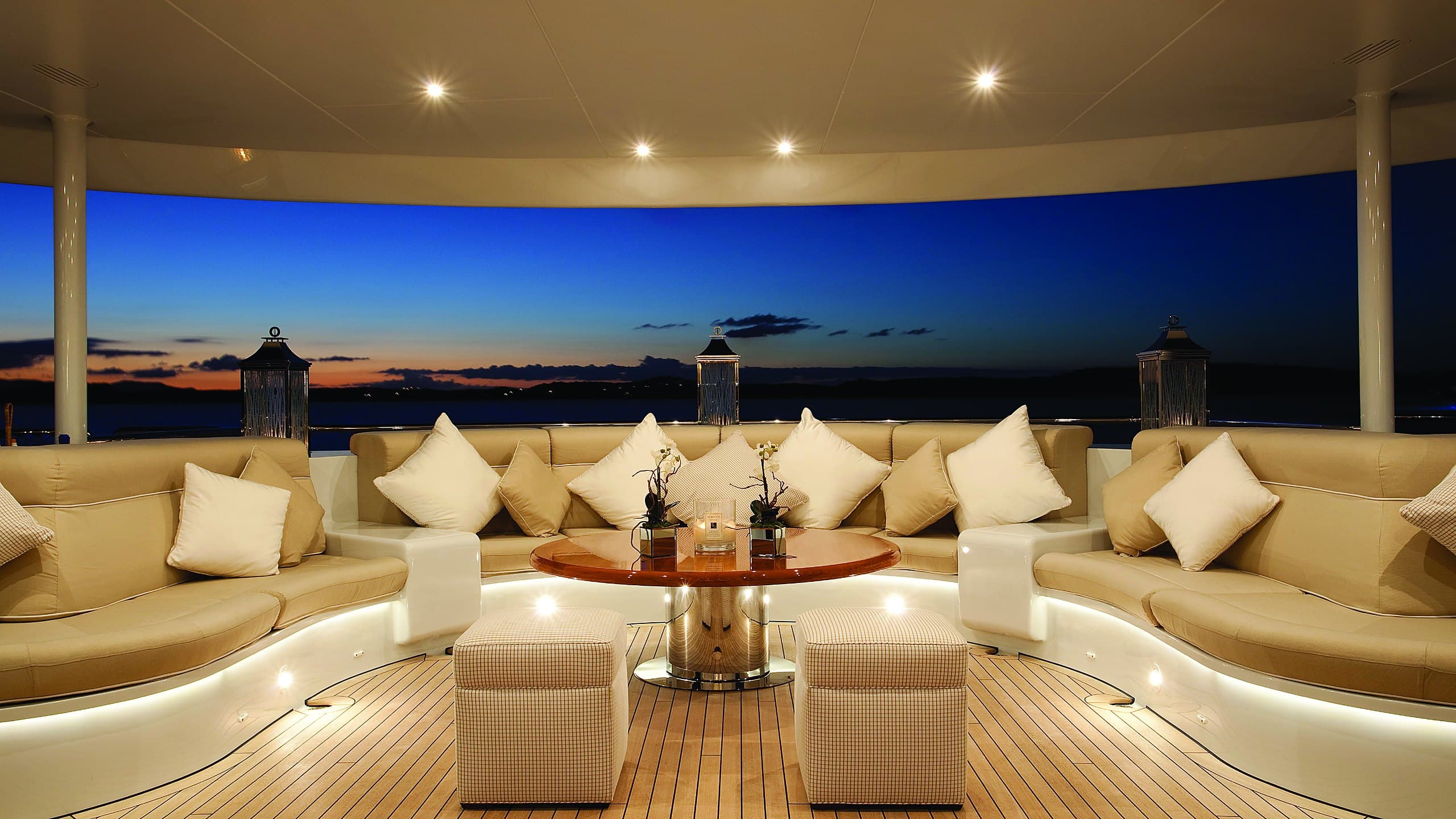

On a superyacht
A refit is a window, not an open-ended project. Because the wiring and panels are largely reused, the work can be prepared and tested off-site and staged into a yard period — often section by section, so the vessel is never wholly without light control. We engineer for the marine environment and coordinate with the yard around charter and haul-out schedules.
The load measured before a refit also lets the new electrical demand be predicted accurately — useful when an LED retrofit and a control upgrade are reducing it at the same time.
In a luxury home
On land, the same reuse of wiring makes a phased upgrade straightforward — a wing or a floor at a time, around how the house is lived in. Owners can keep familiar keypad positions while moving to current finishes, or take the opportunity to rework the scheme entirely with the interior designer.
The result is a home that keeps its proven Lutron foundation but gains app control, tunable light and quiet, daylight-aware shading across every glazed façade.
We are authorised dealers for both Lutron and Crestron, which lets us be honest about roles. For most projects we specify Lutron as the lighting and shading platform — its sole focus, and where the quality of light shows — and bring it into a full Crestron integration when a project also wants audio, video and the wider systems unified under one interface. That applies just as much at sea as on land: upgraded Lutron lighting, orchestrated within a complete Crestron installation.
How we approach an upgrade
Survey & Code Extraction
We record the lighting circuits, panels and keypads, and — while the processor is still live — extract the existing program. Capturing the code before anything fails is the single most valuable step in a smooth upgrade.
Proposal — Full or Phased
A clear proposal with options: a complete upgrade, or a phased plan by deck, wing or zone. We set out what is reused, what is replaced, and how it fits a refit window or a household routine.
Off-site Prep & Schematic
We produce the control schematic, order the hardware, and build and test as much of the system as possible off-site — so on-site time, and disruption, are kept to a minimum.
Install, Commission & Handover
Our own engineers install and integrate, programme the scenes, and walk you through the system, refining each scene until it feels right. Secure remote support continues once it is live.
Common questions
Can a legacy GRAFIK Eye be kept when moving to HomeWorks QSX?
Often yes, at least as an interim step. Existing GRAFIK Eye units and wallbox power modules can be retained on a HomeWorks QS or QSX system through the appropriate link and interface, replaced with GRAFIK Eye QS, or fully absorbed into the new processor. The right route depends on the condition of the hardware, the number of zones and how much of the installation is being renewed.
Does upgrading to LED lighting actually save fuel on a yacht?
Yes. LED draws roughly 80–90% less power than equivalent halogen and runs far cooler, which lowers both the electrical load and the cooling demand that heat creates. On board, that translates into less generator runtime, lower fuel burn and longer intervals between generator servicing — savings that compound across a season.
How long does a Lutron upgrade take during a refit?
It depends on scope, but much of the work can be prepared and tested off-site and staged into a yard period. Because wiring, panels and back-boxes are largely reused, a phased, section-by-section upgrade is usually possible — keeping disruption within scheduled refit windows rather than requiring a full shutdown.
Why owners bring an upgrade to us
An upgrade lives or dies on the detail — extracting the old code, reusing the right infrastructure, and commissioning so the result feels effortless. It is quiet, careful work, and it is what we do.
Based in Palma de Mallorca, we design and commission across the Balearics and the wider Mediterranean, and support every system remotely once it is live.
Authorised Lutron and Crestron dealer
Factory-backed for both — Lutron for lighting and shading, Crestron for full integration — with firmware, licensing and support through official channels, never grey-market.
Upgrade and refit specialists
We work with what is already installed: extracting code, reusing wiring and panels, and staging the work into refit windows or household routines.
Marine and residential, one team
The same studio designs at sea and on land, so a yacht and a villa can share a single standard of finish and the same considered approach to light.
Support from any port
Secure remote access means scenes can be adjusted and questions answered wherever the yacht or residence may be.
Thinking about your Lutron system?
Tell us what you have — the platform, the symptoms, the yacht or residence — and we'll set out the options for bringing it up to current, with as little disruption as possible.
